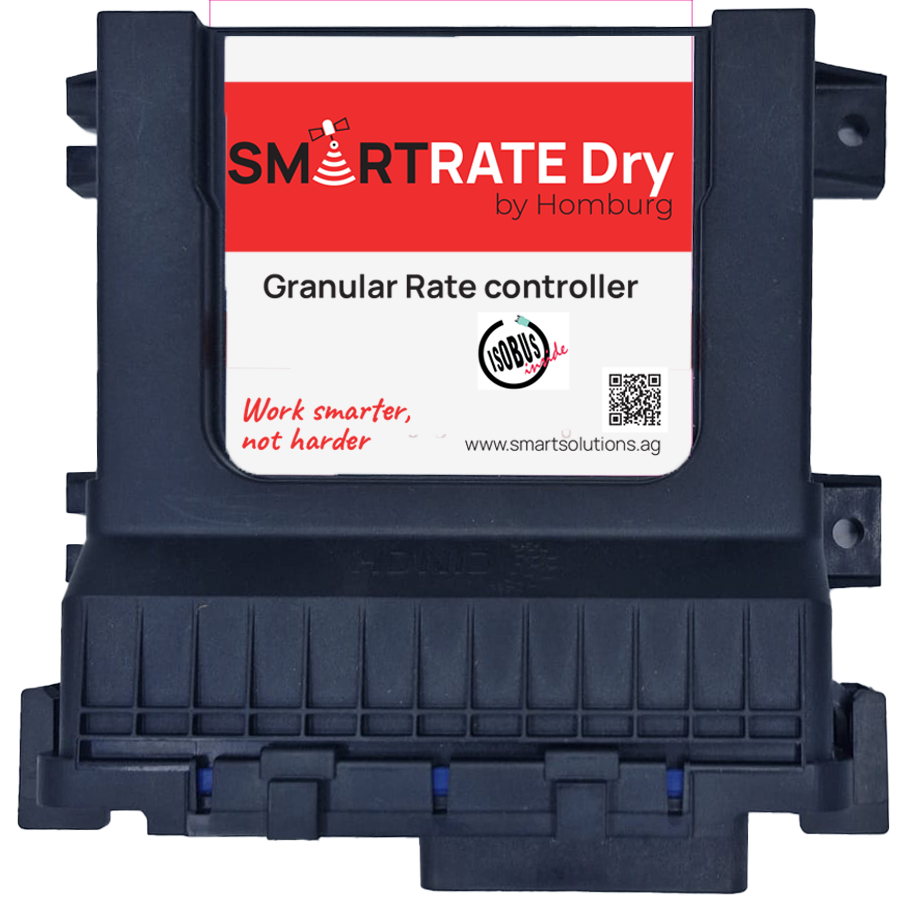

SmartRATE Dry

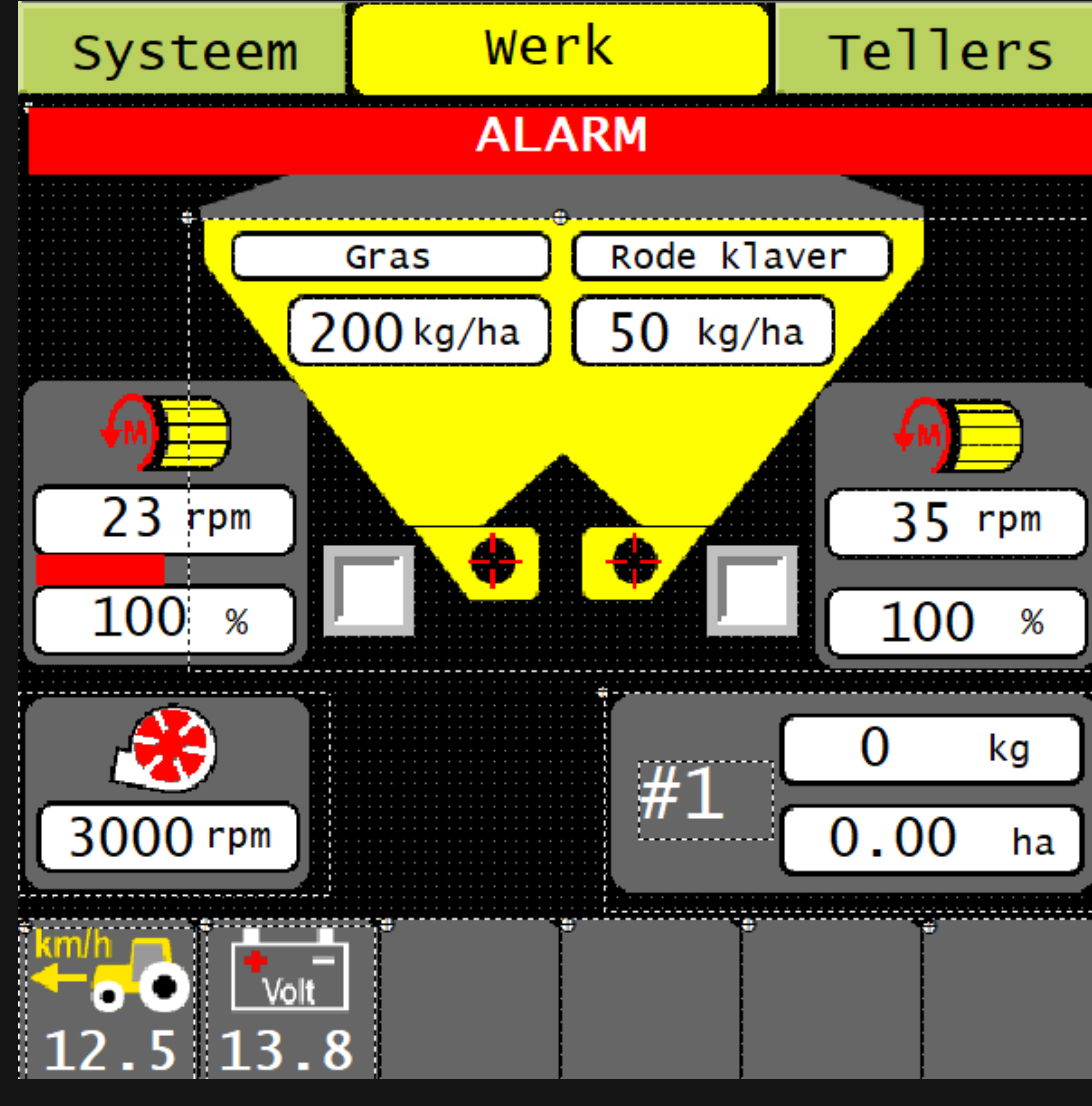

SmartRATE Dry from SmartSOLUTIONS makes it easy to sow and/or dose seeds and/or granulates via ISOBUS. The system doses and switches the machine on or off at the headland or in case of overlap. This ensures an even emergence and less waste of granulate seed. The module can dose 2 (in the future 4) products simultaneously and independently of each other and section switching (up to 8 sections) is also an option. SmartRATE Dry can control various types of implements of all brands: front tanks, granulate bins, camshaft seeders and APV sets. The system has a PWM output for controlling hydraulic motors or electric motors (15A) via a built-in DC-Driver module. Operation and readout was via ISOBUS UT/TC (Task Control) screens, the system can work with task cards and logs the actual dosage. In short: easy installation and many options such as an option for work lighting.

Benefits of SmartRATE Dry

  • Easy to install
  • Connects via ISOBUS socket or can T-in
  • Dosing 1 or 2 (optional 4) products simultaneously and independently
  • Option for section control (max 8 sections)
  • PWM outputs, max 15A per output, 30A total, 60A peak
  • Simple and easy operation
  • Can work with prescriptions and logs actual rate
  • Can save multiple products with weight/density
  • Option to connect and control work lighting
  • Plug play solutions for e.g. Väderstad FH2200 front tank (which then can dose 2 products independently and then also be combined with other implements than the Tempo corn planter)

SmartPLOUGH Hardware

The set consists of an ECU/Control unit and wiring that connects to the ISOBUS on one side and to the control and speed transmitters of the machine on the other side.
